01 / Design
Cohens — the artwork in Tray Master
The actual Cohens job in the current published app. Lettering is intentionally mirrored in the rear-machining view.
A CLOSER LOOK
Inside Tray Master.
Real app screens, from the first job setup to the manufacturing view. Select any image to take a closer look.
02 / Sheets
Cohens — face sheet layout
The saved Cohens design in the current face-sheet workspace.

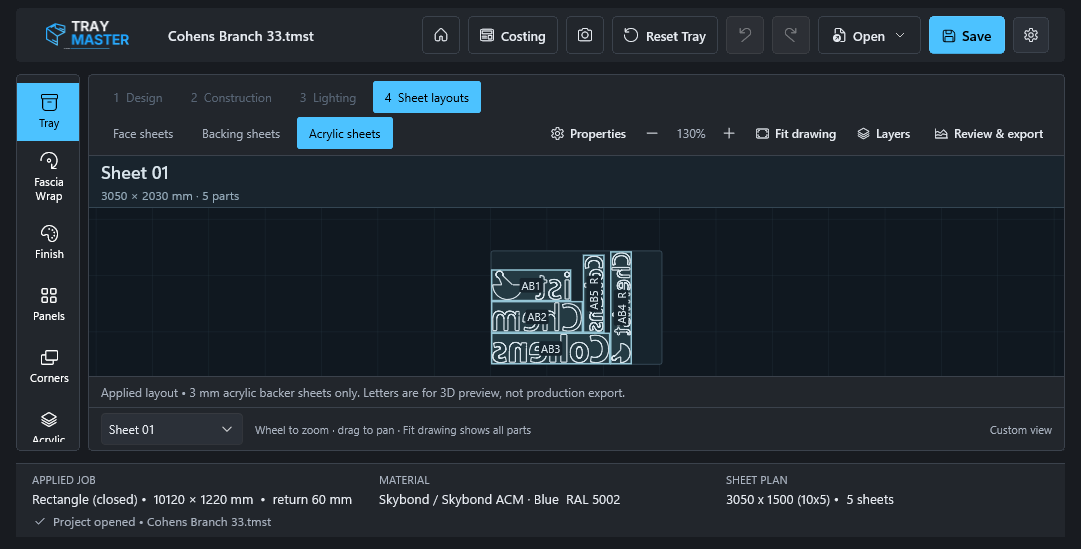

03 / Sheets
Cohens — acrylic components
The Cohens acrylic layout, captured from the actual job in the current app.

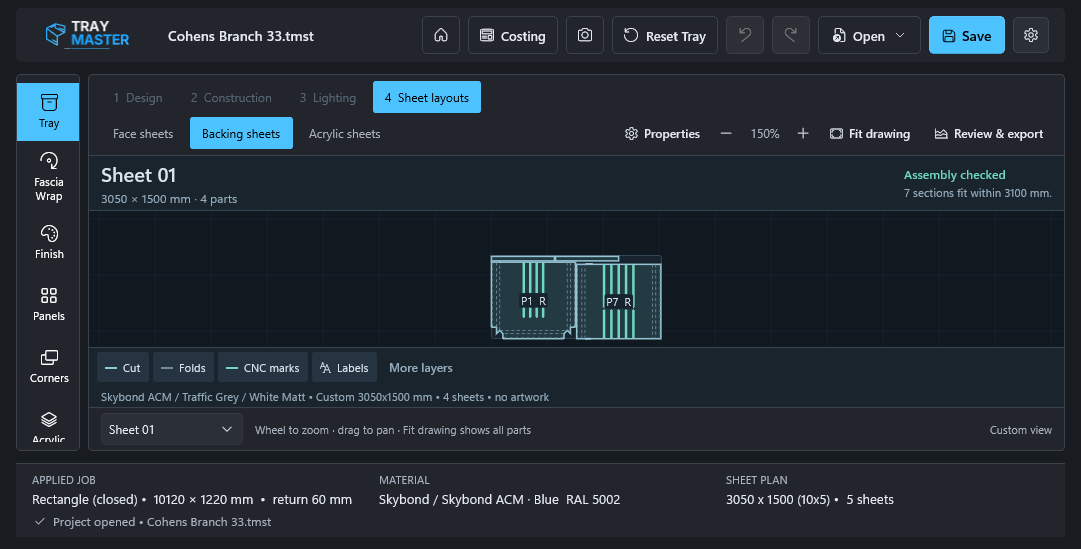

04 / Design
Cohens — backing layout
The backing layout for the Cohens fascia, shown in the current app.

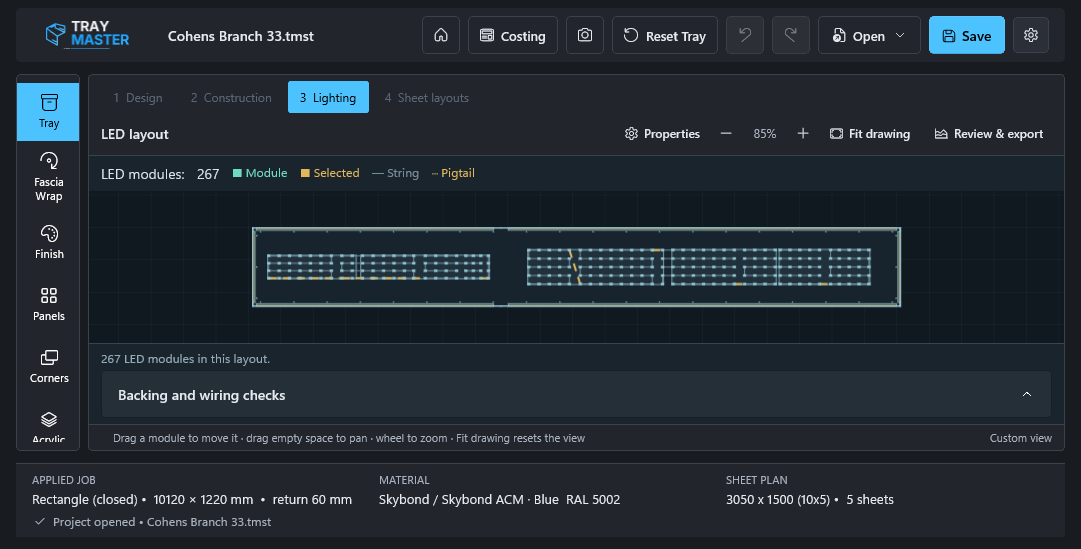

05 / Lighting
Cohens — saved lighting layout
The saved Cohens lighting design, captured in the current app.
06 / Project photos
Cohens — before
The original corner-view survey photograph, showing both fascia legs before replacement.
07 / Mock ups
Cohens — saved daytime mock up
The saved daytime corner-view proposal from the actual Cohens job, showing both fascia legs. This is an app mock up.
08 / Mock ups
Cohens — saved night mock up
The saved night corner-view proposal shows both fascia legs using an externally edited night photograph. This is a presentation mock up.
09 / Project photos
Cohens — completed installation
A real photograph of the completed Cohens fascia wrapping around the building corner.
10 / Reports
Cohens — the report comparison
The Day and night page from the native Cohens PDF, showing both fascia legs in saved corner-view proposals. Completed-installation photos are shown separately.
11 / Design
Field & Flour — supplementary artwork
A fictional bakery artwork example for practising the workflow.
12 / Design
Forge Workshop — supplementary artwork
A fictional workshop artwork example for practising the workflow.
The real Cohens project. Current app captures, original survey photographs, saved mock ups and completed-installation photographs are labelled separately. Two fictional artwork files remain available for extra practice.
